Major HVAC / Process Cooling Project

Industrial Waste Heat Recovery & Adsorption Chiller Evaluation

Supporting industrial clients with energy-efficient cooling solutions by evaluating the use of production waste heat for chilled water generation.

Project Overview

Turning Industrial Waste Heat into Useful Cooling Energy

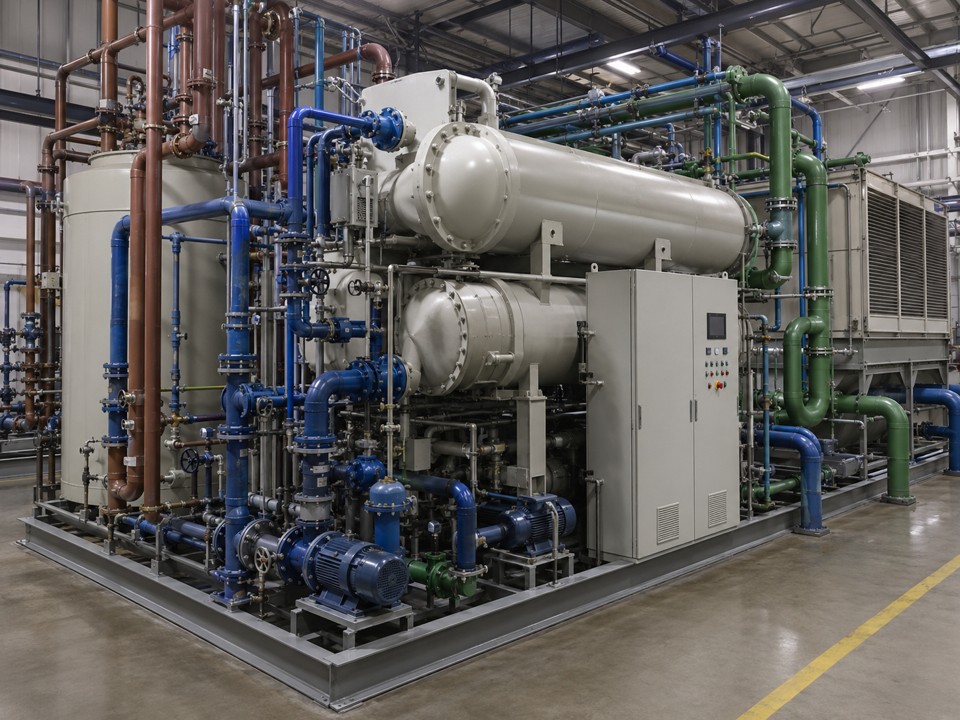

This project focuses on the evaluation of adsorption chiller technology for process cooling applications in industrial facilities. Adsorption chillers are designed to use low-temperature waste heat from production processes to generate chilled water for process cooling or air-conditioning.

The generated chilled water can be integrated into the existing chilled water network, thereby reducing the operating hours of conventional compression chillers and improving overall energy efficiency.

Sostanza’s role is to support the technical evaluation, data gathering, system integration review, and project development process required to determine the suitability and savings potential of the technology.

Project Summary

Project Type: HVAC / Process Cooling

Technology: Adsorption Chiller System

Application: Industrial Waste Heat Recovery

Cooling Output: Chilled Water Generation

Target Sector: Process Industry / Manufacturing

Project Evaluation Scope

A structured assessment approach to determine technical feasibility, savings potential, and system integration requirements.

Waste Heat Source Analysis

Identification and assessment of available waste heat sources including water, air, gas, steam, and process fluids.

Chilled Water Demand Review

Evaluation of chilled water demand, operating temperatures, flow rates, cooling load, and existing compression chiller capacity.

System Integration Study

Review of how the adsorption chiller can be integrated into the existing chilled water network and cooling system.

Modular Design Assessment

Evaluation of modular adsorption chiller units, with basic units of 35 kW cooling capacity combined to meet larger cooling demands.

Energy Savings Estimation

Assessment of electricity savings by reducing compression chiller operating hours through waste heat-driven cooling.

Carbon Reduction Review

Estimation of potential carbon emission reduction based on electricity savings and local carbon intensity data.

Technical Basis

Typical Operating Parameters

The evaluation considers available waste heat, chilled water demand, cooling water requirements, flow rates, and operating temperatures. Typical adsorption chiller applications use hot water inlet temperatures between 55°C and 95°C, chilled water outlet temperatures between 7°C and 20°C, and cooling water temperatures between 25°C and 35°C.

Hot water inlet temperature range: 55°C – 95°C
Chilled water outlet temperature range: 7°C – 20°C
Cooling water temperature range: 25°C – 35°C
Basic modular unit cooling capacity: 35 kW / 10 RT
Example customized capacity: 105 kW / 30 RT
Low auxiliary power consumption for chiller operation

Value to the Client

Energy Efficiency

Reduction in compression chiller operating hours.

Waste Heat Utilization

Conversion of unused process heat into useful cooling output.

Lower Emissions

Potential reduction in indirect carbon emissions.

Industrial Reliability

Improved cooling support for process and facility operations.
